XCMG QY25K5
XCMG QY25K5
Condition
Used
1
of
8
XCMG QY25K5
1
of
8
Overview
Description

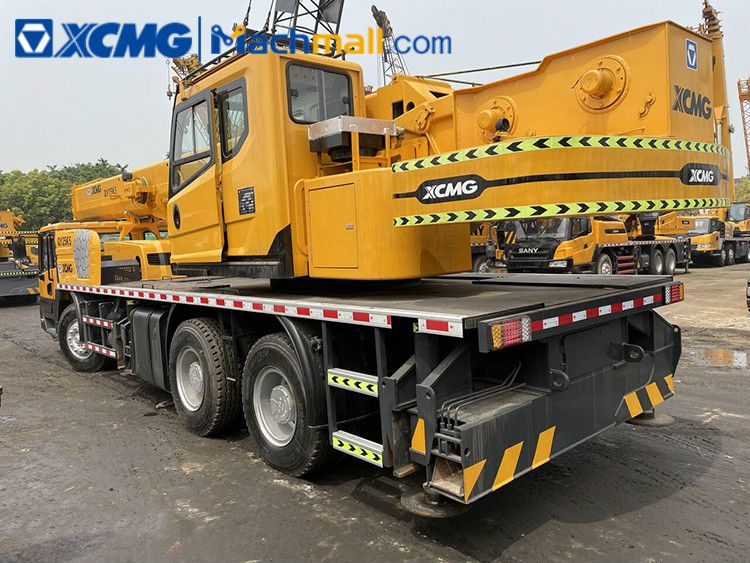

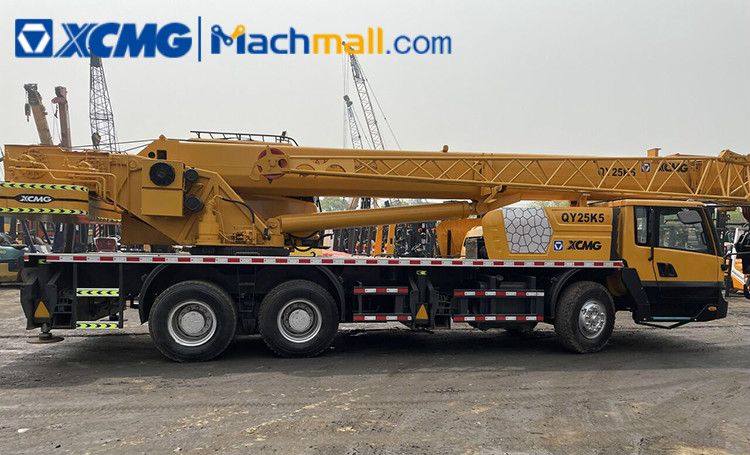

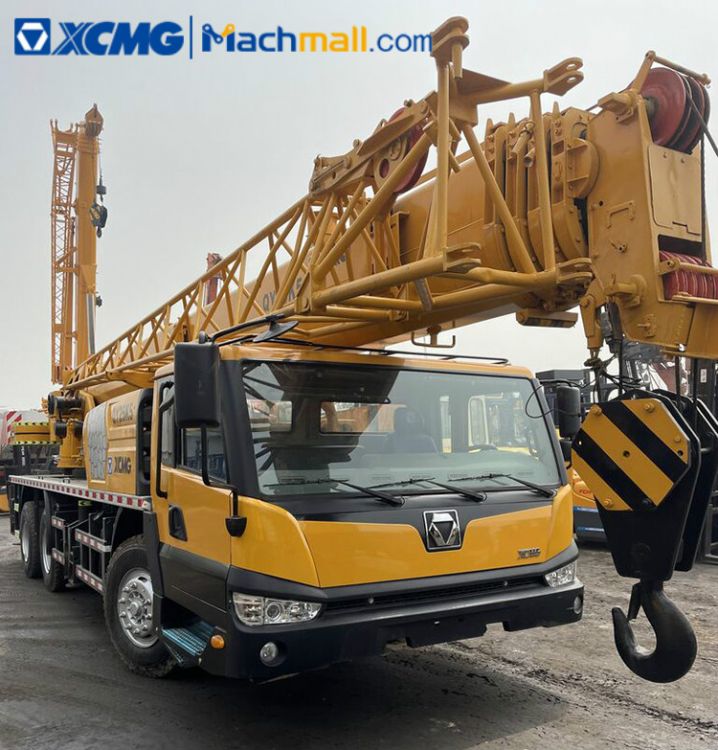

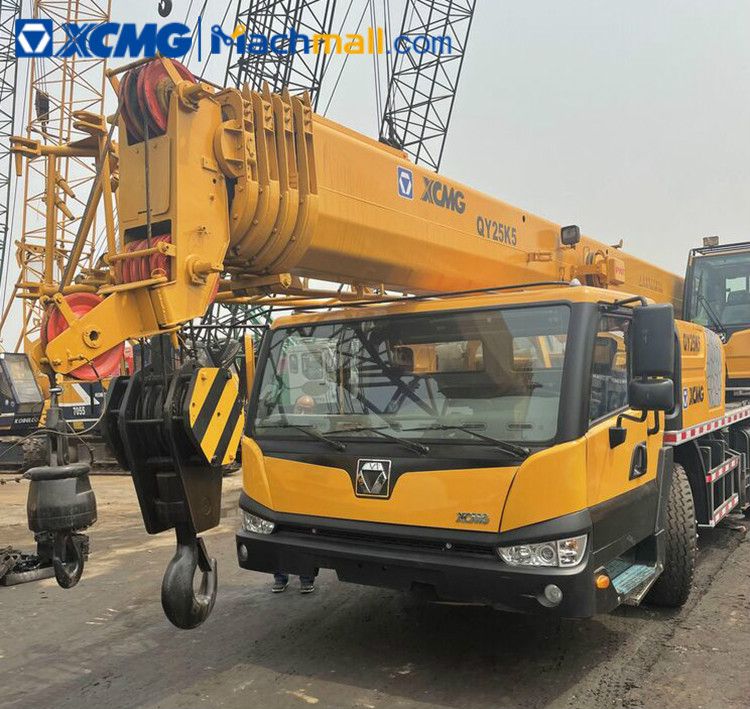

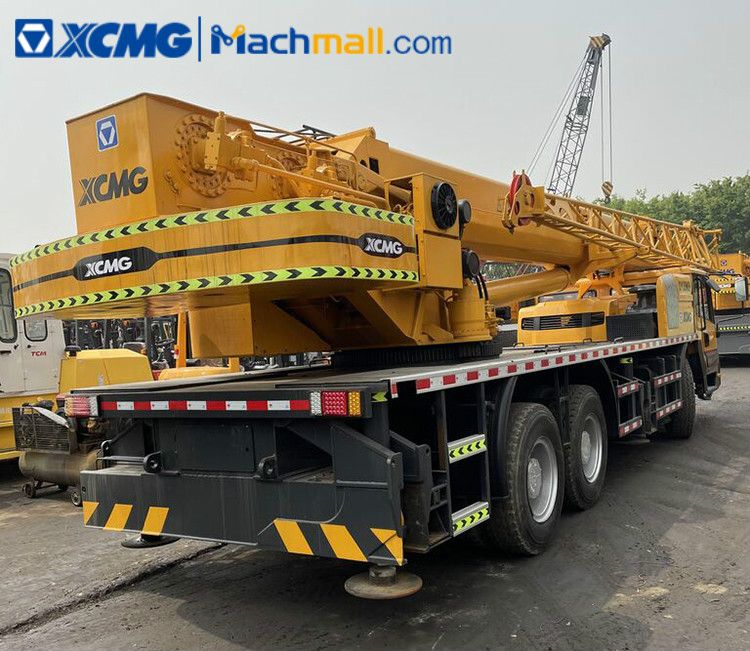

XCMG 25 Ton Used Truck Crane QY25K5 For Sale
Certification: CE/IOS9001
Model Number: QY25K5
Brand Name: XCMG
Place of Origin: Xuzhou, China
Max. Lifting Height: 47m
Max. Lifting Load: 25t
weight: 31620.000kg
Moving Type: Other
: 7 days for ready goods
: 1 Piece
: Any Port In China
Description UnitParameter value
Overall length mm12650
Overall width mm2500
Overall Height mm3380
Wheel Base mm4425+1350
Track mm2074/1834/1834
Total vehicle mass in travel configuration kg29400
Axle loadFront axlekg6600
Rear axle 22800
Engine Model SC8DK280Q3
Engine rated power kw/(r/min)206/2200
Engine rated torque N.m/(r/min)1112/1400
Max. travel speed km/h75
Min. travel speed km/h2.9
Min. turning diameter m22
Min. ground clearance mm260
Max. grade ability %30
Approach angle °16
Departure angle °13
Braking distance (at 30 km/h, full load ) m≤10
Oil consumption per 100km L≤37
Exterior noise level during acceleration traveling dB (A)84
Noise level at seated position dB (A)90
Marketing TypeNew Product 20203.065m
Warranty of core components1 Year961m
Core ComponentsGearbox10.4m
ColorYellow39.5s
Fully extended boom+jibm47.8s
Longitudinal outrigger spanm5.14r/min
Lateral outrigger spanm6m/min
Working speed m/min
Boom luffing times68
Boom full extension times150
Max. swing speedr/min2.5
Max. speed of main winch (single rope) (no load)m/min125
Max. speed of aux. winch (single rope) (no load)m/min125
XCMG 25 Ton Used Truck Crane QY25K5 For SaleCertification: CE/IOS9001
Model Number: QY25K5
Brand Name: XCMG
Place of Origin: Xuzhou, China
Max. Lifting Height: 47m
Max. Lifting Load: 25t
weight: 31620.000kg
Moving Type: Other
: 7 days for ready goods
: 1 Piece
: Any Port In China
Description UnitParameter value
Overall length mm12650
Overall width mm2500
Overall Height mm3380
Wheel Base mm4425+1350
Track mm2074/1834/1834
Total vehicle mass in travel configuration kg29400
Axle loadFront axlekg6600
Rear axle 22800
Engine Model SC8DK280Q3
Engine rated power kw/(r/min)206/2200
Engine rated torque N.m/(r/min)1112/1400
Max. travel speed km/h75
Min. travel speed km/h2.9
Min. turning diameter m22
Min. ground clearance mm260
Max. grade ability %30
Approach angle °16
Departure angle °13
Braking distance (at 30 km/h, full load ) m≤10
Oil consumption per 100km L≤37
Exterior noise level during acceleration traveling dB (A)84
Noise level at seated position dB (A)90
Marketing TypeNew Product 20203.065m
Warranty of core components1 Year961m
Core ComponentsGearbox10.4m
ColorYellow39.5s
Fully extended boom+jibm47.8s
Longitudinal outrigger spanm5.14r/min
Lateral outrigger spanm6m/min
Working speed m/min
Boom luffing times68
Boom full extension times150
Max. swing speedr/min2.5
Max. speed of main winch (single rope) (no load)m/min125
Max. speed of aux. winch (single rope) (no load)m/min125
Certification: CE/IOS9001
Model Number: QY25K5
Brand Name: XCMG
Place of Origin: Xuzhou, China
Max. Lifting Height: 47m
Max. Lifting Load: 25t
weight: 31620.000kg
Moving Type: Other
: 7 days for ready goods
: 1 Piece
: Any Port In China
Description UnitParameter value
Overall length mm12650
Overall width mm2500
Overall Height mm3380
Wheel Base mm4425+1350
Track mm2074/1834/1834
Total vehicle mass in travel configuration kg29400
Axle loadFront axlekg6600
Rear axle 22800
Engine Model SC8DK280Q3
Engine rated power kw/(r/min)206/2200
Engine rated torque N.m/(r/min)1112/1400
Max. travel speed km/h75
Min. travel speed km/h2.9
Min. turning diameter m22
Min. ground clearance mm260
Max. grade ability %30
Approach angle °16
Departure angle °13
Braking distance (at 30 km/h, full load ) m≤10
Oil consumption per 100km L≤37
Exterior noise level during acceleration traveling dB (A)84
Noise level at seated position dB (A)90
Marketing TypeNew Product 20203.065m
Warranty of core components1 Year961m
Core ComponentsGearbox10.4m
ColorYellow39.5s
Fully extended boom+jibm47.8s
Longitudinal outrigger spanm5.14r/min
Lateral outrigger spanm6m/min
Working speed m/min
Boom luffing times68
Boom full extension times150
Max. swing speedr/min2.5
Max. speed of main winch (single rope) (no load)m/min125
Max. speed of aux. winch (single rope) (no load)m/min125
Show more Show less
